Name: ADP2390ACPZ-R7
Brand: Analog Devices Inc.
SKU: ADP2390ACPZ-R7
Price: 9.08 USD
Availability: InStock

REF: ADP2390ACPZ-R7 Analog Devices Inc.

ADP2390ACPZ-R7

Analog Devices Inc.

18V,12A HIGH EFF STEPDOWN REG W/

ADP2390ACPZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. 18V,12A HIGH EFF STEPDOWN REG W/. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 32-VFQFN Exposed Pad, CSP, current - output 12A.

Datasheet Request a Quote

In Stock: 3,623

Tiered Pricing USD

1+ $9.0800 —

10+ $6.1310 -32%

25+ $5.3616 -41%

100+ $4.4910 -51%

250+ $4.0636 -55%

500+ $4.0250 -56% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	0.6V

Voltage - Output (Max)	18V
Current - Output	12A
Frequency - Switching	200kHz ~ 2.2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount

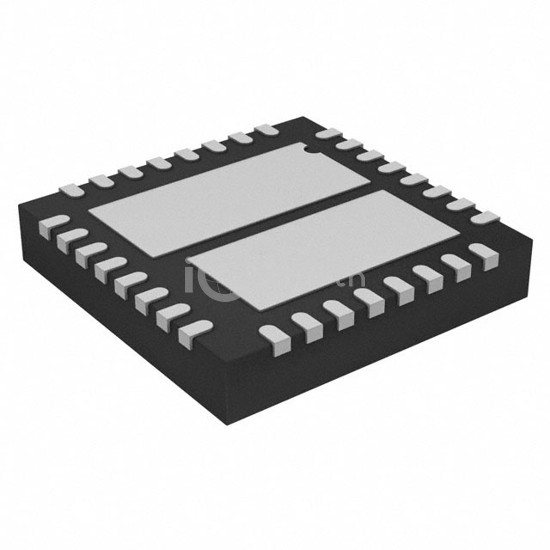

Package / Case	32-VFQFN Exposed Pad, CSP
Supplier Device Package	32-LFCSP-VQ (5x5)
