Name: ADP220ACBZ-2818R7
Brand: Analog Devices Inc.
SKU: ADP220ACBZ-2818R7
Price: 3.34 USD
Availability: InStock

REF: ADP220ACBZ-2818R7 Analog Devices Inc.

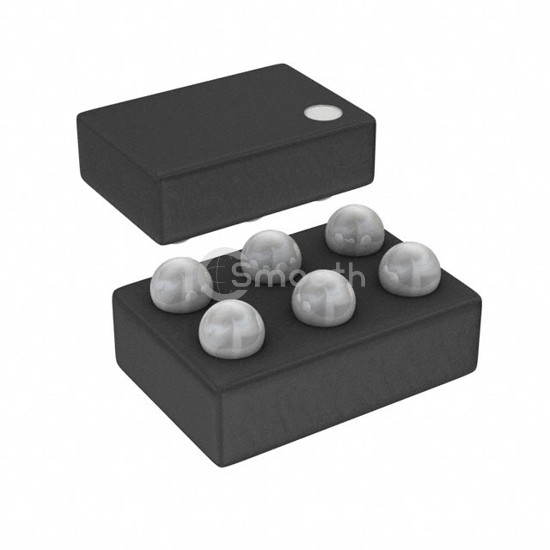

ADP220ACBZ-2818R7

Analog Devices Inc.

IC REG LINEAR 1.8V/2.8V 6WLCSP

ADP220ACBZ-2818R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 1.8V/2.8V 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WFBGA, WLCSP, current - supply (max) 220 µA.

Datasheet Request a Quote

In Stock: 19,977

Tiered Pricing USD

1+ $3.3400 —

10+ $2.1290 -36%

25+ $1.8132 -46%

100+ $1.4556 -56%

250+ $1.2800 -62%

500+ $1.1720 -65%

1,000+ $1.0816 -68% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V, 2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-, 0.23V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	120 µA
Current - Supply (Max)	220 µA
PSRR	68dB ~ 40dB (100Hz ~ 1MHz), -
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.45x0.95)
