Name: ADP2138ACBZ-1.0-R7
Brand: Analog Devices Inc.
SKU: ADP2138ACBZ-1.0-R7
Price: 4.18 USD
Availability: InStock

REF: ADP2138ACBZ-1.0-R7 Analog Devices Inc.

ADP2138ACBZ-1.0-R7

Analog Devices Inc.

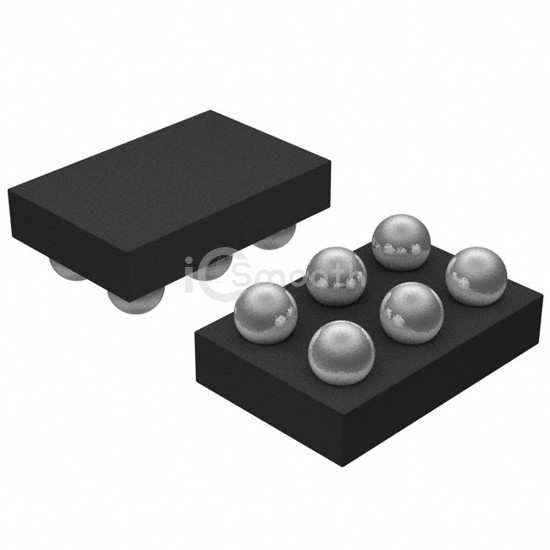

IC REG BUCK 1V 800MA 6WLCSP

ADP2138ACBZ-1.0-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK 1V 800MA 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFBGA, WLCSP, current - output 800mA.

Datasheet Request a Quote

In Stock: 10,735

Tiered Pricing USD

1+ $4.1800 —

10+ $2.6980 -35%

25+ $2.3108 -45%

100+ $1.8727 -55%

250+ $1.6576 -60%

500+ $1.5252 -64%

1,000+ $1.4144 -66% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V

Voltage - Output (Max)	-
Current - Output	800mA
Frequency - Switching	3MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFBGA, WLCSP
Supplier Device Package	6-WLCSP (1.03x1.50)
