Name: ADP1764ACPZ0.85-R7
Brand: Analog Devices Inc.
SKU: ADP1764ACPZ0.85-R7
Price: 8.95 USD
Availability: InStock

REF: ADP1764ACPZ0.85-R7 Analog Devices Inc.

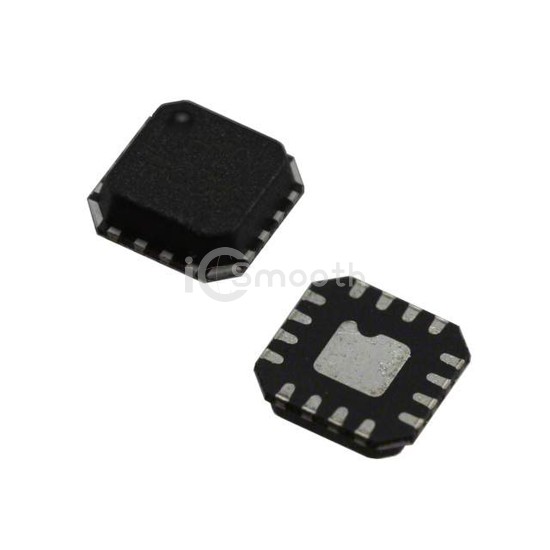

ADP1764ACPZ0.85-R7

Analog Devices Inc.

IC REG LINEAR 0.85V 4A 16LFCSP

ADP1764ACPZ0.85-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 0.85V 4A 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, CSP, current - supply (max) 23 mA.

Datasheet Request a Quote

In Stock: 2,892

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	1.98V
Voltage - Output (Min/Fixed)	0.85V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.075V @ 4A
Current - Output	4A

Current - Quiescent (Iq)	17 mA
Current - Supply (Max)	23 mA
PSRR	69dB ~ 35dB (10kHz ~ 1MHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Current Limit, Thermal Overload
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP (3x3)
