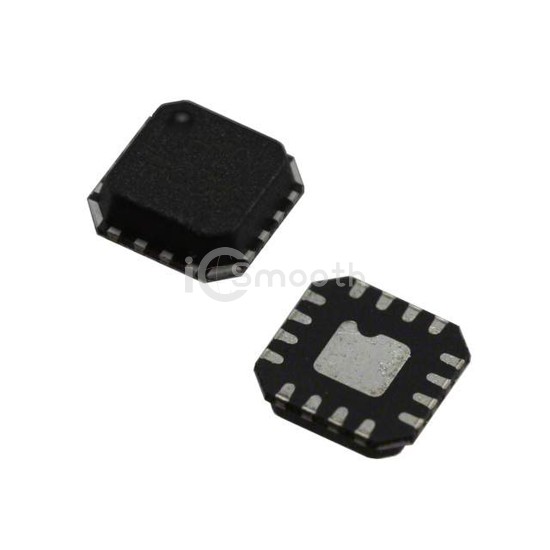

Name: ADP1764ACPZ-R7
Brand: Analog Devices Inc.
SKU: ADP1764ACPZ-R7
Price: 16.55 USD
Availability: InStock

REF: ADP1764ACPZ-R7 Analog Devices Inc.

ADP1764ACPZ-R7

Analog Devices Inc.

IC REG LINEAR POS ADJ 4A 16LFCSP

ADP1764ACPZ-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR POS ADJ 4A 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, CSP, current - supply (max) 23 mA.

Datasheet Request a Quote

In Stock: 3,874

Tiered Pricing USD

1+ $16.5500 —

10+ $11.6070 -30%

25+ $10.3180 -38%

100+ $8.9500 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	1.98V
Voltage - Output (Min/Fixed)	0.5V
Voltage - Output (Max)	1.5V
Voltage Dropout (Max)	0.075V @ 4A
Current - Output	4A

Current - Quiescent (Iq)	17 mA
Current - Supply (Max)	23 mA
PSRR	69dB ~ 35dB (10kHz ~ 1MHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Current Limit, Thermal Overload
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP (3x3)
