Name: ADP172ACBZ-1.8-R7
Brand: Analog Devices Inc.
SKU: ADP172ACBZ-1.8-R7
Price: 2.21 USD
Availability: InStock

REF: ADP172ACBZ-1.8-R7 Analog Devices Inc.

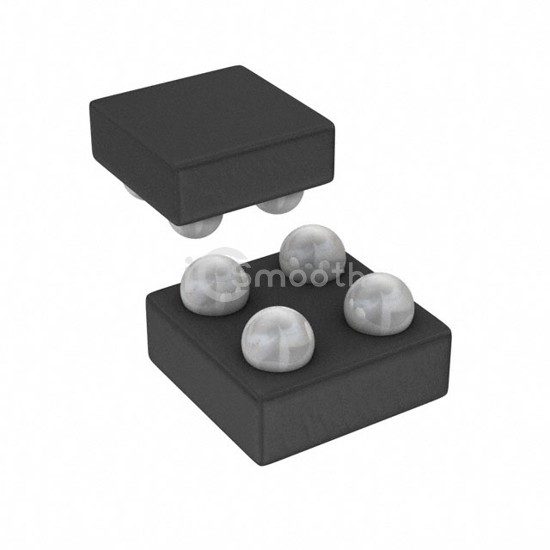

ADP172ACBZ-1.8-R7

Analog Devices Inc.

IC REG LINEAR 1.8V 300MA 4WLCSP

ADP172ACBZ-1.8-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 1.8V 300MA 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 4-UFBGA, WLCSP, current - supply (max) 260 nA.

Datasheet Request a Quote

In Stock: 43

Tiered Pricing USD

1+ $2.2100 —

10+ $1.3780 -38%

25+ $1.1620 -47%

100+ $0.9171 -59%

250+ $0.7970 -64%

500+ $0.7230 -67%

1,000+ $0.6611 -70% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	3.6V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.1V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	60 µA
Current - Supply (Max)	260 nA
PSRR	73dB ~ 47dB (1kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-UFBGA, WLCSP
Supplier Device Package	4-WLCSP (0.95x1.03)
