Name: ADP125ARHZ-R7
Brand: Analog Devices Inc.
SKU: ADP125ARHZ-R7
Price: 3.46 USD
Availability: InStock

REF: ADP125ARHZ-R7 Analog Devices Inc.

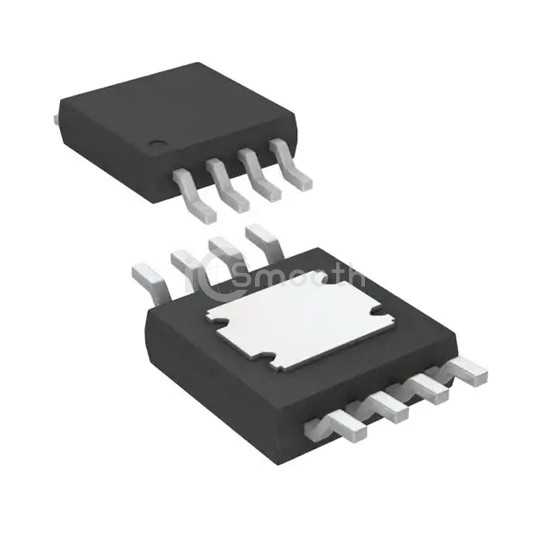

ADP125ARHZ-R7

Analog Devices Inc.

IC REG LIN POS ADJ 500MA 8MSOP

ADP125ARHZ-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad, current - supply (max) 280 µA.

Datasheet Request a Quote

In Stock: 19

Tiered Pricing USD

1+ $3.4600 —

10+ $2.2070 -36%

25+ $1.8812 -46%

100+ $1.5125 -56%

250+ $1.3314 -62%

500+ $1.2200 -65% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.23V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	105 µA
Current - Supply (Max)	280 µA
PSRR	60dB (10kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-MSOP-EP
