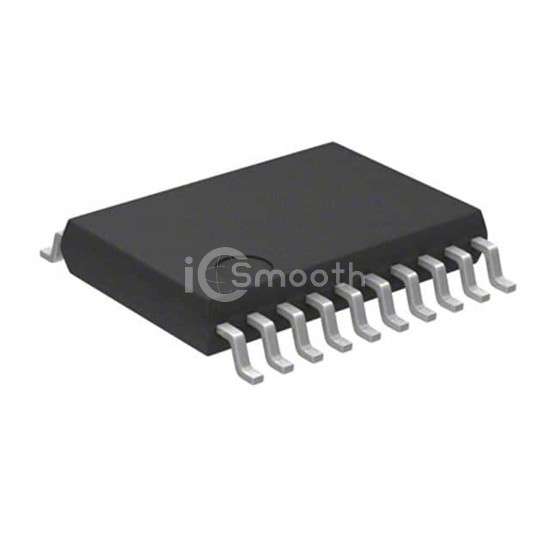

Name: ADN4656BRWZ
Brand: Analog Devices Inc.
SKU: ADN4656BRWZ
Price: 15.83 USD
Availability: InStock

REF: ADN4656BRWZ Analog Devices Inc.

ADN4656BRWZ

Analog Devices Inc.

DGT ISO 5000VRMS 2CH LVDS 20SOIC

ADN4656BRWZ is a Digital Isolators manufactured by Analog Devices Inc.. DGT ISO 5000VRMS 2CH LVDS 20SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.375V ~ 2.625V, package / case 20-SOIC (0.295", 7.50mm Width).

Request a Quote

In Stock: 5,410

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	LVDS
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs

Data Rate	1.1Gbps
Propagation Delay tpLH / tpHL (Max)	4.5ns, 4.5ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	0.35ns, 0.35ns (Max)
Voltage - Supply	2.375V ~ 2.625V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SOIC
