Name: ADN4624BRNZ
Brand: Analog Devices Inc.
SKU: ADN4624BRNZ
Price: 38.46 USD
Availability: InStock

REF: ADN4624BRNZ Analog Devices Inc.

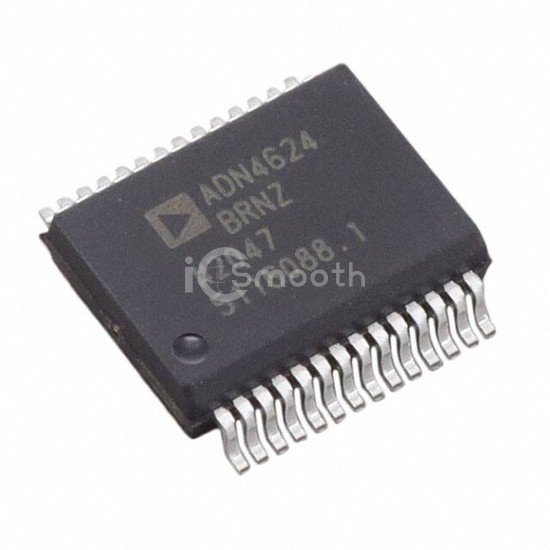

ADN4624BRNZ

Analog Devices Inc.

QUAD 2.5GBPS 4+0 LVDS ISOLATOR

ADN4624BRNZ is a Digital Isolators manufactured by Analog Devices Inc.. QUAD 2.5GBPS 4+0 LVDS ISOLATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.7V ~ 1.9V, package / case 28-BSSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 8,535

Tiered Pricing USD

1+ $38.4600 —

10+ $28.5070 -26%

46+ $26.4874 -31% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	LVDS
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	4/0
Channel Type	Unidirectional
Voltage - Isolation	5700Vrms
Common Mode Transient Immunity (Min)	40kV/µs

Data Rate	2.5Gbps
Propagation Delay tpLH / tpHL (Max)	2.8ns, 2.8ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	180ns, 180ns (Max)
Voltage - Supply	1.7V ~ 1.9V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC-W-FP
