ADMV8818SCCZ-EP

In Stock: 6,686

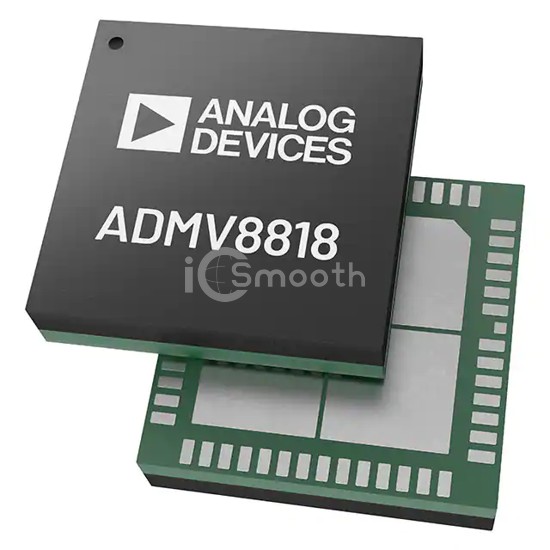

ADMV8818SCCZ-EP - Analog Devices Inc. - RF Switches
REF: ADMV8818SCCZ-EP Analog Devices Inc.
ADMV8818SCCZ-EP

Analog Devices Inc.

2 TO 18 GHZ MULTI OCTAVE SWITCHE

ADMV8818SCCZ-EP is a RF Switches manufactured by Analog Devices Inc.. 2 TO 18 GHZ MULTI OCTAVE SWITCHE. Key specifications: operating temperature -55°C ~ 105°C, voltage - supply ±2.4V ~ 2.6V, 3.2V ~ 3.4V, package / case 56-TFLGA Exposed Pad, frequency range 2GHz ~ 18GHz.

Datasheet Request a Quote

In Stock: 6,686

Specifications

16 parameters
Product StatusActive
RF TypeRadar
Topology-
Circuit4 x SP5T
Frequency Range2GHz ~ 18GHz
Isolation-
Insertion Loss-14.6dB
Test Frequency18GHz
P1dB-
IIP345dBm
Features-
Impedance50Ohm
Voltage - Supply±2.4V ~ 2.6V, 3.2V ~ 3.4V
Operating Temperature-55°C ~ 105°C
Package / Case56-TFLGA Exposed Pad
Supplier Device Package56-LGA (9x9)
