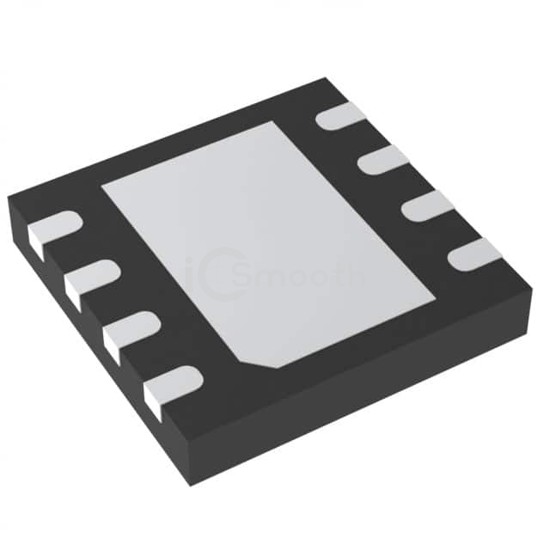

Name: ADM7151ACPZ-04-R7
Brand: Analog Devices Inc.
SKU: ADM7151ACPZ-04-R7
Price: 11.66 USD
Availability: InStock

REF: ADM7151ACPZ-04-R7 Analog Devices Inc.

ADM7151ACPZ-04-R7

Analog Devices Inc.

IC REG LIN POS ADJ 800MA 8LFCSP

ADM7151ACPZ-04-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 800MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 12 mA.

Datasheet Request a Quote

In Stock: 1,045

Tiered Pricing USD

1+ $11.6600 —

10+ $7.9910 -31%

25+ $7.0356 -40%

100+ $5.9555 -49%

250+ $5.6250 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	5.1V
Voltage Dropout (Max)	1.2V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	7 mA
Current - Supply (Max)	12 mA
PSRR	94dB ~ 53dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
