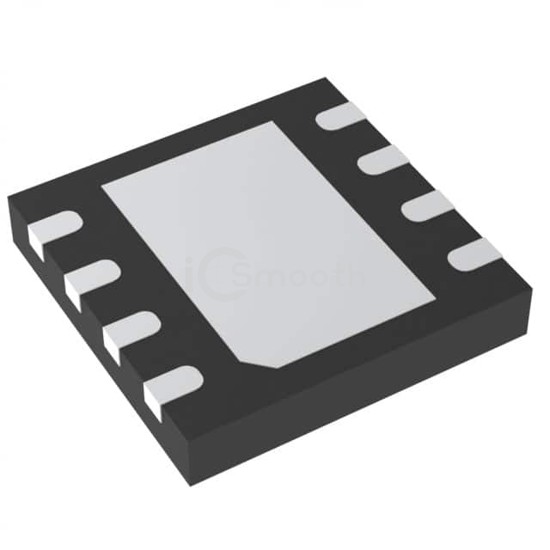

Name: ADM7151ACPZ-02-R2
Brand: Analog Devices Inc.
SKU: ADM7151ACPZ-02-R2
Availability: InStock

REF: ADM7151ACPZ-02-R2 Analog Devices Inc.

ADM7151ACPZ-02-R2

800MA ULN 1.5TO4VO ADJ LDO

ADM7151ACPZ-02-R2 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. 800MA ULN 1.5TO4VO ADJ LDO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 12 mA.

Datasheet Request a Quote

In Stock: 5,841

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	4V
Voltage Dropout (Max)	1.2V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	7 mA
Current - Supply (Max)	12 mA
PSRR	94dB ~ 50dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
