Name: ADM7150ACPZ-3.3-R2
Brand: Analog Devices Inc.
SKU: ADM7150ACPZ-3.3-R2
Price: 11.66 USD
Availability: InStock

REF: ADM7150ACPZ-3.3-R2 Analog Devices Inc.

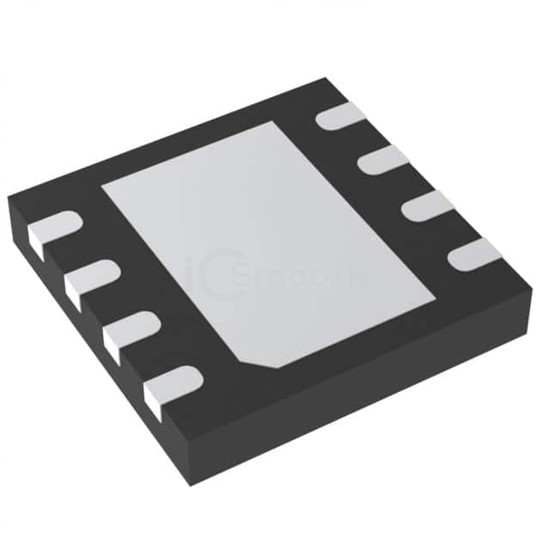

ADM7150ACPZ-3.3-R2

Analog Devices Inc.

IC REG LINEAR 3.3V 800MA 8LFCSP

ADM7150ACPZ-3.3-R2 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 3.3V 800MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 12 mA.

Datasheet Request a Quote

In Stock: 6,659

Tiered Pricing USD

1+ $11.6600 —

10+ $7.9910 -31%

25+ $7.0356 -40%

100+ $5.9555 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	800mA

Current - Quiescent (Iq)	7 mA
Current - Supply (Max)	12 mA
PSRR	94dB ~ 62dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
