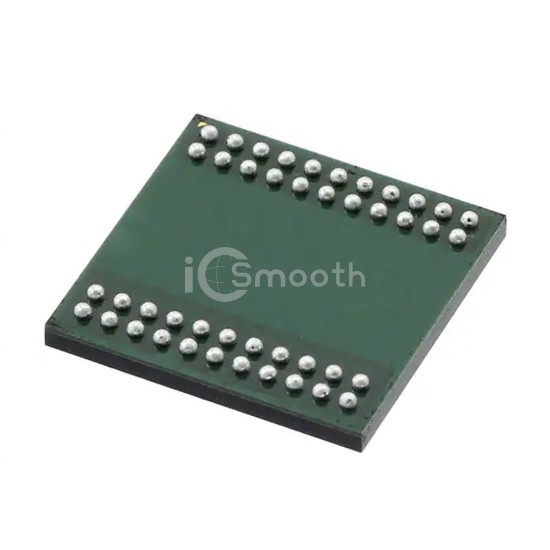

Name: ADM3252EABCZ
Brand: Analog Devices Inc.
SKU: ADM3252EABCZ
Price: 24.36 USD
Availability: InStock

REF: ADM3252EABCZ Analog Devices Inc.

ADM3252EABCZ

Analog Devices Inc.

DGTL ISO 2500VRMS RS232 44CSPBGA

ADM3252EABCZ is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 2500VRMS RS232 44CSPBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 44-LBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 8,271

Tiered Pricing USD

1+ $24.3600 —

10+ $17.5230 -28%

42+ $14.9024 -39%

126+ $14.8000 -39% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	RS232
Isolated Power	Yes
Number of Channels	4
Inputs - Side 1/Side 2	2/2
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	25kV/µs

Data Rate	460Kbps
Propagation Delay tpLH / tpHL (Max)	-
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	44-LBGA, CSPBGA
Supplier Device Package	44-CSPBGA (12x12)
