ADL9005ACPZN

In Stock: 1,019

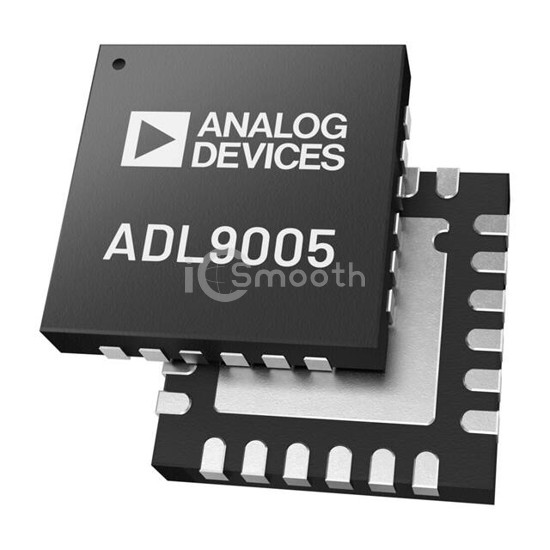

ADL9005ACPZN - Analog Devices Inc. - RF Amplifiers
REF: ADL9005ACPZN Analog Devices Inc.
ADL9005ACPZN

Analog Devices Inc.

DC TO 28 GHZ DISTRIBUTED LNA

ADL9005ACPZN is a RF Amplifiers manufactured by Analog Devices Inc.. DC TO 28 GHZ DISTRIBUTED LNA. Key specifications: mounting type Surface Mount, voltage - supply 3V ~ 6V, package / case 24-WFQFN Exposed Pad, CSP, current - supply 80mA.

Datasheet Request a Quote

In Stock: 1,019

Tiered Pricing USD
1+ $230.0200 —
10+ $203.5490 -12%
25+ $194.4044 -15% BEST

Specifications

12 parameters
Product StatusActive
Frequency10MHz ~ 26.5GHz
P1dB13.5dBm
Gain19dB
Noise Figure4dB
RF TypeGeneral Purpose
Voltage - Supply3V ~ 6V
Current - Supply80mA
Test Frequency10MHz ~ 20GHz
Mounting TypeSurface Mount
Package / Case24-WFQFN Exposed Pad, CSP
Supplier Device Package24-LFCSP (4x4)
