ADL8150ACPZN-R7

In Stock: 4,704

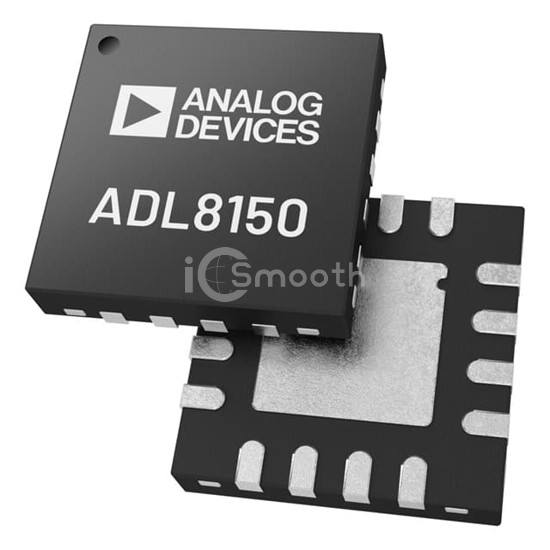

ADL8150ACPZN-R7 - Analog Devices Inc. - RF Amplifiers
REF: ADL8150ACPZN-R7 Analog Devices Inc.
ADL8150ACPZN-R7

Analog Devices Inc.

LOW PHASE NOISE AMPLIFIER

ADL8150ACPZN-R7 is a RF Amplifiers manufactured by Analog Devices Inc.. LOW PHASE NOISE AMPLIFIER. Key specifications: mounting type Surface Mount, voltage - supply 3V ~ 6V, package / case 6-VDFN Exposed Pad, CSP, current - supply 74mA.

Datasheet Request a Quote

In Stock: 4,704

Specifications

12 parameters
Product StatusActive
Frequency6GHz ~ 14GHz
P1dB18dBm
Gain10.5dB
Noise Figure3.6dB
RF TypeGeneral Purpose
Voltage - Supply3V ~ 6V
Current - Supply74mA
Test Frequency7GHz ~ 12GHz
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad, CSP
Supplier Device Package6-LFCSP (2x2)
