ADL5605ACPZ-R7

In Stock: 1,296

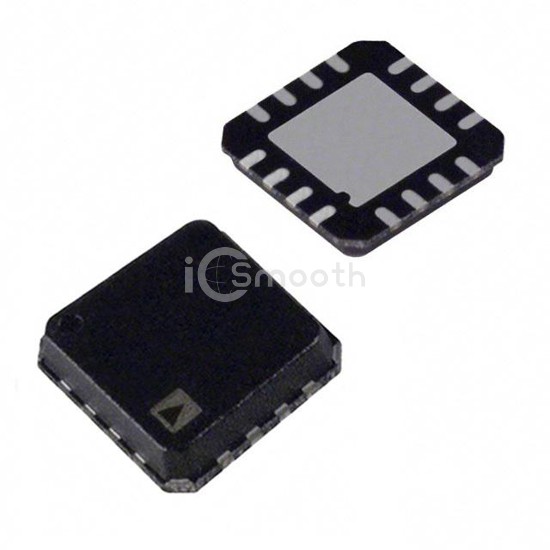

ADL5605ACPZ-R7 - Analog Devices Inc. - RF Amplifiers
REF: ADL5605ACPZ-R7 Analog Devices Inc.
ADL5605ACPZ-R7

Analog Devices Inc.

IC AMP GP 700MHZ-1GHZ 16LFCSP

ADL5605ACPZ-R7 is a RF Amplifiers manufactured by Analog Devices Inc.. IC AMP GP 700MHZ-1GHZ 16LFCSP. Key specifications: mounting type Surface Mount, voltage - supply 4.75V ~ 5.25V, package / case 16-VQFN Exposed Pad, CSP, current - supply 307mA.

Datasheet Request a Quote

In Stock: 1,296

Tiered Pricing USD
1+ $20.0100 —
10+ $17.4390 -13%
25+ $16.5464 -17%
100+ $15.3227 -23% BEST

Specifications

12 parameters
Product StatusActive
Frequency700MHz ~ 1GHz
P1dB30.9dB
Gain23dB
Noise Figure4.8dB
RF TypeGeneral Purpose
Voltage - Supply4.75V ~ 5.25V
Current - Supply307mA
Test Frequency943MHz
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
