ADL5591ACPZ-R7

In Stock: 6,961

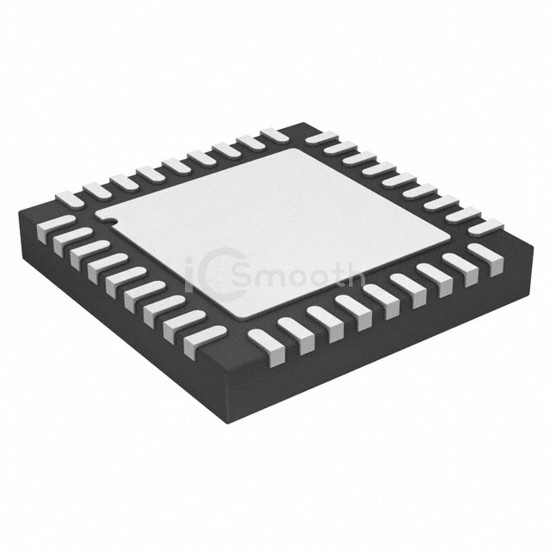

ADL5591ACPZ-R7 - Analog Devices Inc. - RF Modulators
REF: ADL5591ACPZ-R7 Analog Devices Inc.
ADL5591ACPZ-R7

Analog Devices Inc.

RF MODULATOR 1.805-1.99GHZ 36QFN

ADL5591ACPZ-R7 is a RF Modulators manufactured by Analog Devices Inc.. RF MODULATOR 1.805-1.99GHZ 36QFN. Key specifications: voltage - supply 4.75V ~ 5.25V, package / case 36-VFQFN Exposed Pad, CSP, current - supply 170 mA.

Datasheet Request a Quote

In Stock: 6,961

Specifications

11 parameters
Product StatusActive
FunctionModulator
LO Frequency-
RF Frequency1.805GHz ~ 1.99GHz
P1dB16dBm
Noise Floor-157dBM/Hz
Output Power4.7dBm
Current - Supply170 mA
Voltage - Supply4.75V ~ 5.25V
Test Frequency1.96GHz
Package / Case36-VFQFN Exposed Pad, CSP
