ADL5335ACPZN-R7

In Stock: 4,091

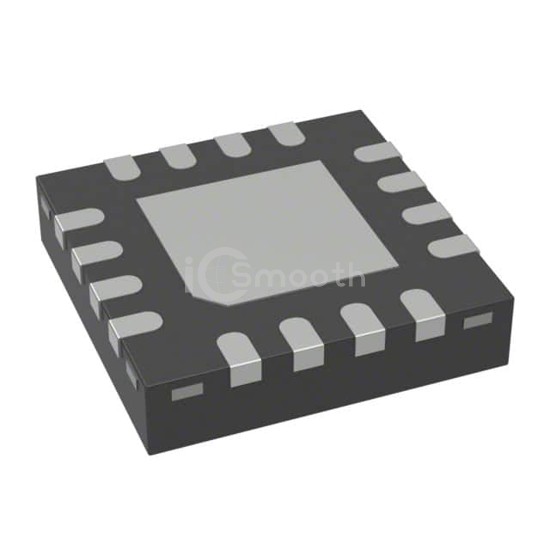

ADL5335ACPZN-R7 - Analog Devices Inc. - RF Amplifiers
REF: ADL5335ACPZN-R7 Analog Devices Inc.
ADL5335ACPZN-R7

Analog Devices Inc.

IC AMP GP 700MHZ-4.2GHZ 16LFCSP

ADL5335ACPZN-R7 is a RF Amplifiers manufactured by Analog Devices Inc.. IC AMP GP 700MHZ-4.2GHZ 16LFCSP. Key specifications: mounting type Surface Mount, voltage - supply 4.75V ~ 5.25V, package / case 16-WQFN Exposed Pad, CSP, current - supply 125mA.

Datasheet Request a Quote

In Stock: 4,091

Specifications

12 parameters
Product StatusActive
Frequency700MHz ~ 4.2GHz
P1dB18.3dBm
Gain13dB
Noise Figure8.3dB
RF TypeGeneral Purpose
Voltage - Supply4.75V ~ 5.25V
Current - Supply125mA
Test Frequency925MHz ~ 4.2GHz
Mounting TypeSurface Mount
Package / Case16-WQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP (4x4)
