ADL5335ACPZN

In Stock: 5,777

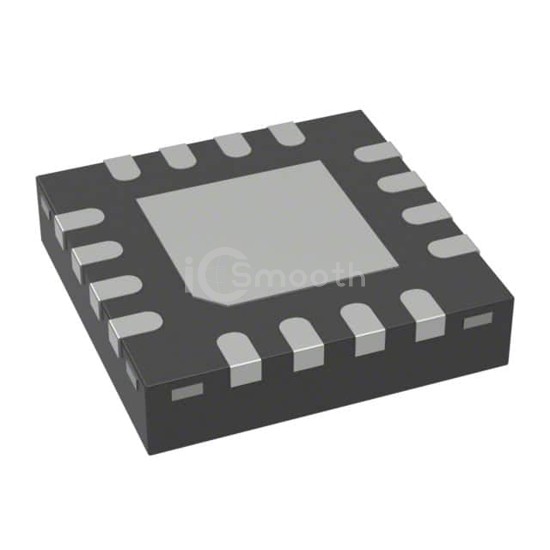

ADL5335ACPZN - Analog Devices Inc. - RF Amplifiers
REF: ADL5335ACPZN Analog Devices Inc.
ADL5335ACPZN

Analog Devices Inc.

IC AMP GP 700MHZ-4.2GHZ 16LFCSP

ADL5335ACPZN is a RF Amplifiers manufactured by Analog Devices Inc.. IC AMP GP 700MHZ-4.2GHZ 16LFCSP. Key specifications: mounting type Surface Mount, voltage - supply 4.75V ~ 5.25V, package / case 16-WQFN Exposed Pad, CSP, current - supply 125mA.

Datasheet Request a Quote

In Stock: 5,777

Tiered Pricing USD
1+ $26.8500 —
10+ $23.4380 -13%
37+ $21.7768 -19%
111+ $20.5191 -24%
259+ $19.6276 -27%
518+ $18.9457 -29% BEST

Specifications

12 parameters
Product StatusActive
Frequency700MHz ~ 4.2GHz
P1dB18.3dBm
Gain13dB
Noise Figure8.3dB
RF TypeGeneral Purpose
Voltage - Supply4.75V ~ 5.25V
Current - Supply125mA
Test Frequency925MHz ~ 4.2GHz
Mounting TypeSurface Mount
Package / Case16-WQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP (4x4)
