ADL5320ARKZ-R7

In Stock: 488

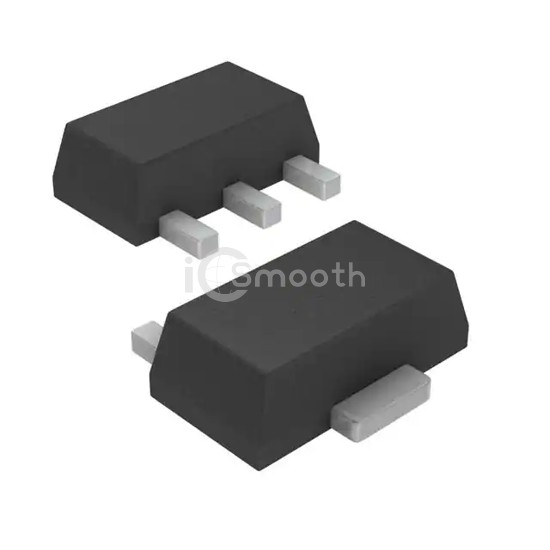

ADL5320ARKZ-R7 - Analog Devices Inc. - RF Amplifiers
REF: ADL5320ARKZ-R7 Analog Devices Inc.
ADL5320ARKZ-R7

Analog Devices Inc.

IC RF AMP 400MHZ-2.7GHZ SOT89-3

ADL5320ARKZ-R7 is a RF Amplifiers manufactured by Analog Devices Inc.. IC RF AMP 400MHZ-2.7GHZ SOT89-3. Key specifications: mounting type Surface Mount, voltage - supply 4.5V ~ 5.5V, package / case TO-243AA, current - supply 104mA ~ 124mA.

Datasheet Request a Quote

In Stock: 488

Tiered Pricing USD
1+ $7.4000 —
10+ $6.4150 -13%
25+ $6.0724 -18%
100+ $5.6020 -24%
250+ $5.3202 -28%
500+ $5.1214 -31% BEST

Specifications

12 parameters
Product StatusActive
Frequency400MHz ~ 2.7GHz
P1dB27.4dBm
Gain11.5dB ~ 13.4dB
Noise Figure5.1dB
RF Type-
Voltage - Supply4.5V ~ 5.5V
Current - Supply104mA ~ 124mA
Test Frequency2.6GHz
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
