ADGM1304JCPZ-RL7

In Stock: 5,570

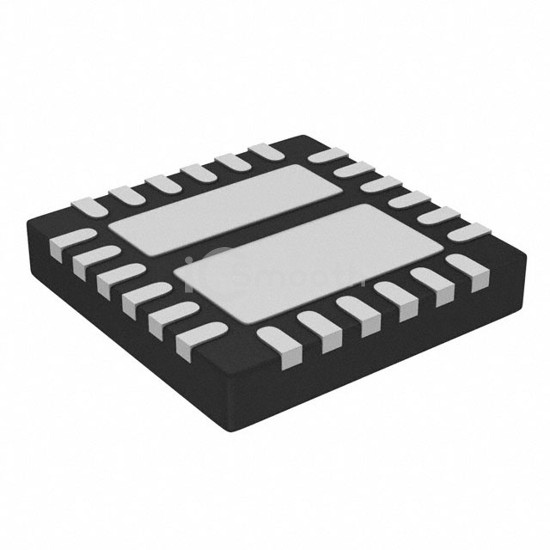

ADGM1304JCPZ-RL7 - Analog Devices Inc. - RF Switches
REF: ADGM1304JCPZ-RL7 Analog Devices Inc.
ADGM1304JCPZ-RL7

Analog Devices Inc.

IC RF SWITCH SP4T 14GHZ 24LFCSP

ADGM1304JCPZ-RL7 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 14GHZ 24LFCSP. Key specifications: operating temperature 0°C ~ 85°C, voltage - supply 3.1V ~ 3.3V, package / case 24-VFQFN Exposed Pad, frequency range 0Hz ~ 14GHz.

Datasheet Request a Quote

In Stock: 5,570

Tiered Pricing USD
1+ $86.5000 —
10+ $76.0500 -12%
25+ $72.4348 -16%
100+ $67.4848 -22% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSP4T
Frequency Range0Hz ~ 14GHz
Isolation19dB
Insertion Loss0.4dB
Test Frequency6GHz
P1dB-
IIP369dBm
Features-
Impedance50Ohm
Voltage - Supply3.1V ~ 3.3V
Operating Temperature0°C ~ 85°C
Package / Case24-VFQFN Exposed Pad
Supplier Device Package24-LFCSP (5x4)
