ADGM1004JCPZ-RL7

In Stock: 2

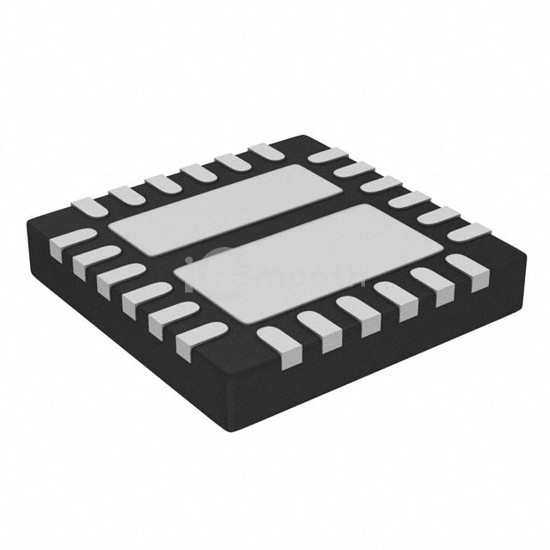

ADGM1004JCPZ-RL7 - Analog Devices Inc. - RF Switches
REF: ADGM1004JCPZ-RL7 Analog Devices Inc.
ADGM1004JCPZ-RL7

Analog Devices Inc.

IC RF SWITCH SP4T 24LFCSP

ADGM1004JCPZ-RL7 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 24LFCSP. Key specifications: operating temperature 0°C ~ 85°C, voltage - supply 3.1V ~ 3.3V, package / case 24-LFQFN Exposed Pad, CSP, frequency range DC ~ 13GHz.

Datasheet Request a Quote

In Stock: 2

Tiered Pricing USD
1+ $92.4000 —
10+ $81.2730 -12%
25+ $77.4232 -16%
100+ $72.3940 -22% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSP4T
Frequency RangeDC ~ 13GHz
Isolation19dB
Insertion Loss0.63dB
Test Frequency6GHz
P1dB-
IIP367dBm
Features-
Impedance50Ohm
Voltage - Supply3.1V ~ 3.3V
Operating Temperature0°C ~ 85°C
Package / Case24-LFQFN Exposed Pad, CSP
Supplier Device Package24-LFCSP (5x4)
