ADG901SCPZ-EP

In Stock: 878

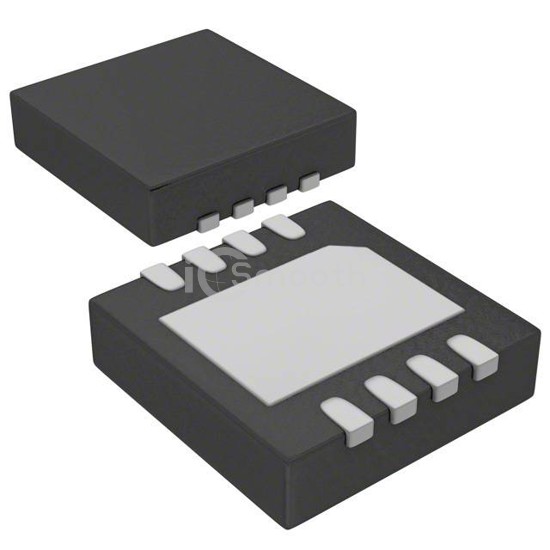

ADG901SCPZ-EP - Analog Devices Inc. - RF Switches
REF: ADG901SCPZ-EP Analog Devices Inc.
ADG901SCPZ-EP

Analog Devices Inc.

IC RF SWITCH SPST 1GHZ 8LFCSP

ADG901SCPZ-EP is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPST 1GHZ 8LFCSP. Key specifications: operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 2.75V, package / case 8-WFDFN Exposed Pad, CSP, frequency range 0Hz ~ 1GHz.

Datasheet Request a Quote

In Stock: 878

Specifications

16 parameters
Product StatusActive
RF Type-
Topology-
CircuitSPST
Frequency Range0Hz ~ 1GHz
Isolation38dB
Insertion Loss0.8dB
Test Frequency1GHz
P1dB17dBm
IIP336dBm
Features-
Impedance50Ohm
Voltage - Supply1.65V ~ 2.75V
Operating Temperature-55°C ~ 125°C
Package / Case8-WFDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP (3x3)
