ADFS5758BCPZ-RL7

In Stock: 1,326

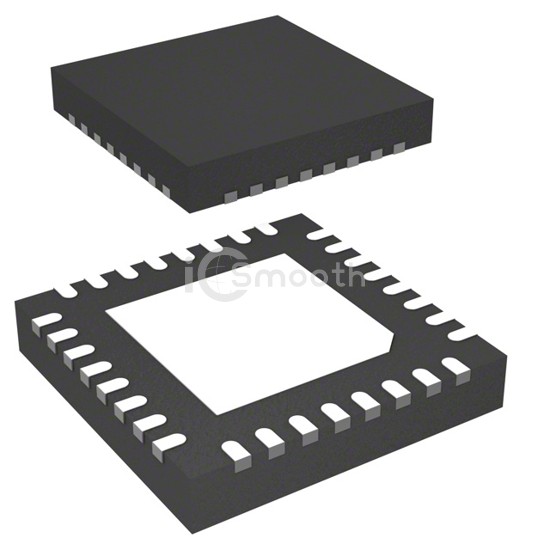

ADFS5758BCPZ-RL7 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: ADFS5758BCPZ-RL7 Analog Devices Inc.
ADFS5758BCPZ-RL7

Analog Devices Inc.

FUNCTIONALSAFECERTIFIED VERSION/

ADFS5758BCPZ-RL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. FUNCTIONALSAFECERTIFIED VERSION/. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 1.71V ~ 5.5V, package / case 32-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 1,326

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time15µs (Typ), 20µs
Output TypeVoltage or Current - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal, Internal
Voltage - Supply, Analog7V ~ 33V
Voltage - Supply, Digital1.71V ~ 5.5V
INL/DNL (LSB)±0.006FSR (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 105°C
Package / Case32-VFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP (5x5)
Mounting TypeSurface Mount
