Name: ADDAC87CBI-V
Brand: Analog Devices Inc.
SKU: ADDAC87CBI-V
Availability: InStock

REF: ADDAC87CBI-V Analog Devices Inc.

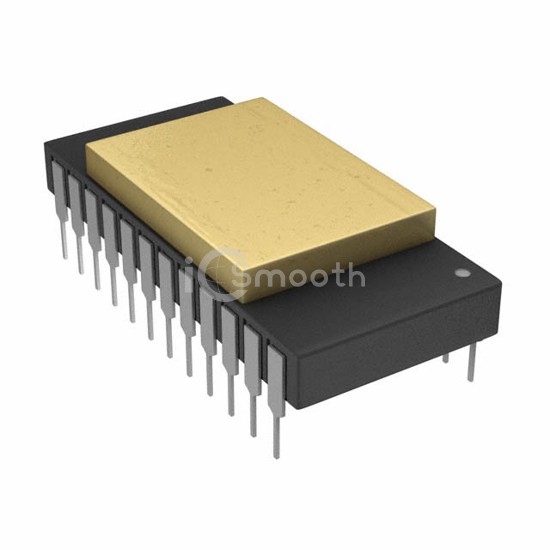

ADDAC87CBI-V

IC DAC 12BIT V-OUT 24CERDIP

ADDAC87CBI-V is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 24CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 4.5V ~ 15.5V, package / case 24-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 7,141

Specifications

16 parameters

Product Status	Obsolete
Number of Bits	12
Number of D/A Converters	1
Settling Time	4µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	Parallel
Reference Type	External, Internal

Voltage - Supply, Analog	±11.4V ~ 16.5V
Voltage - Supply, Digital	4.5V ~ 15.5V
INL/DNL (LSB)	±0.5, ±1 (Max)
Architecture	R-2R
Operating Temperature	-55°C ~ 125°C
Package / Case	24-CDIP (0.600", 15.24mm)
Supplier Device Package	24-CDIP
Mounting Type	Through Hole
