Name: ADCMP605BCPZ-R2
Brand: Analog Devices Inc.
SKU: ADCMP605BCPZ-R2
Availability: InStock

REF: ADCMP605BCPZ-R2 Analog Devices Inc.

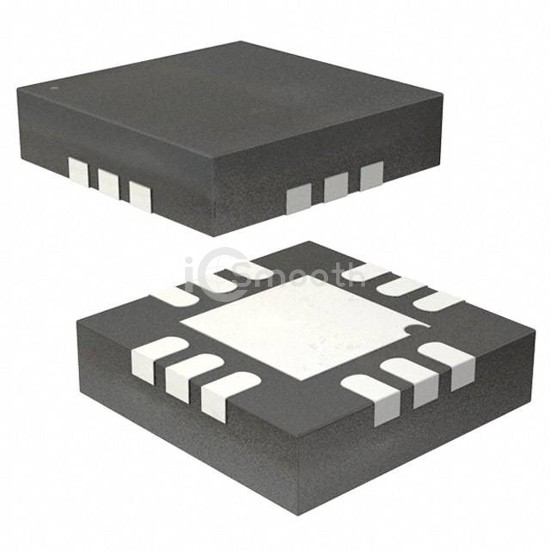

ADCMP605BCPZ-R2

IC COMP LVDS 1CHAN 12-LFCSP

ADCMP605BCPZ-R2 is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMP LVDS 1CHAN 12-LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFQFN Exposed Pad, CSP, output type Complementary, LVDS, Rail-to-Rail.

Datasheet Request a Quote

In Stock: 2,806

Specifications

16 parameters

Product Status	Discontinued at Digi-Key
Type	with Latch
Number of Elements	1
Output Type	Complementary, LVDS, Rail-to-Rail
Voltage - Supply, Single/Dual (±)	2.5V ~ 5.5V
Voltage - Input Offset (Max)	5mV @ 3V
Current - Input Bias (Max)	5µA @ 3V
Current - Output (Typ)	50mA

Current - Quiescent (Max)	3mA
CMRR, PSRR (Typ)	50dB CMRR, 50dB PSRR
Propagation Delay (Max)	3ns
Hysteresis	100µV
Operating Temperature	-40°C ~ 125°C
Package / Case	12-WFQFN Exposed Pad, CSP
Mounting Type	Surface Mount
Supplier Device Package	12-LFCSP (3x3)
