Name: ADCMP603BCPZ-WP
Brand: Analog Devices Inc.
SKU: ADCMP603BCPZ-WP
Price: 7.43 USD
Availability: InStock

REF: ADCMP603BCPZ-WP Analog Devices Inc.

ADCMP603BCPZ-WP

Analog Devices Inc.

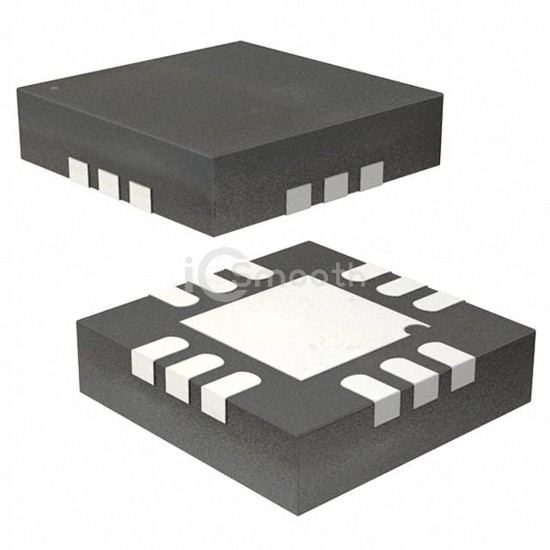

IC COMP TTL/CMOS 1CHAN 12-LFCSP

ADCMP603BCPZ-WP is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMP TTL/CMOS 1CHAN 12-LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFQFN Exposed Pad, output type CMOS, Complementary, Rail-to-Rail, TTL.

Datasheet Request a Quote

In Stock: 2,634

Tiered Pricing USD

1+ $7.4300 —

10+ $4.9510 -33%

50+ $3.9086 -47%

100+ $3.5758 -52%

250+ $3.2175 -57%

500+ $3.0625 -59% BEST

Specifications

16 parameters

Product Status	Active
Type	with Latch
Number of Elements	1
Output Type	CMOS, Complementary, Rail-to-Rail, TTL
Voltage - Supply, Single/Dual (±)	2.5V ~ 5.5V
Voltage - Input Offset (Max)	5mV @ 2.5V
Current - Input Bias (Max)	5µA @ 2.5V
Current - Output (Typ)	50mA

Current - Quiescent (Max)	1.8mA
CMRR, PSRR (Typ)	50dB CMRR, 50dB PSRR
Propagation Delay (Max)	5ns
Hysteresis	100µV
Operating Temperature	-40°C ~ 125°C
Package / Case	12-WFQFN Exposed Pad
Mounting Type	Surface Mount
Supplier Device Package	12-LFCSP-WQ (3x3)
