Name: ADCMP566BCPZ
Brand: Analog Devices Inc.
SKU: ADCMP566BCPZ
Price: 9.94 USD
Availability: InStock

REF: ADCMP566BCPZ Analog Devices Inc.

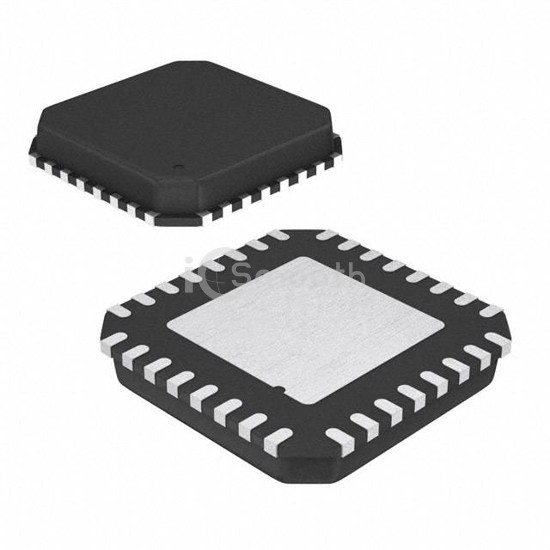

ADCMP566BCPZ

Analog Devices Inc.

IC COMP DUAL ULTRA-FAST 32LFCSP

ADCMP566BCPZ is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMP DUAL ULTRA-FAST 32LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 32-VFQFN Exposed Pad, CSP, output type Complementary, Differential, ECL, Open-Emitter.

Datasheet Request a Quote

In Stock: 74

Specifications

16 parameters

Product Status	Active
Type	with Latch
Number of Elements	2
Output Type	Complementary, Differential, ECL, Open-Emitter
Voltage - Supply, Single/Dual (±)	±4.75V ~ 5.25V
Voltage - Input Offset (Max)	5mV @ -5.2V, 5V
Current - Input Bias (Max)	42µA @ -5.2V,5V
Current - Output (Typ)	30mA

Current - Quiescent (Max)	18mA, 85mA
CMRR, PSRR (Typ)	69dB CMRR
Propagation Delay (Max)	0.29ns
Hysteresis	±1mV
Operating Temperature	-40°C ~ 85°C
Package / Case	32-VFQFN Exposed Pad, CSP
Mounting Type	Surface Mount
Supplier Device Package	32-LFCSP (5x5)
