Name: ADCMP564BRQZ
Brand: Analog Devices Inc.
SKU: ADCMP564BRQZ
Price: 10.49 USD
Availability: InStock

REF: ADCMP564BRQZ Analog Devices Inc.

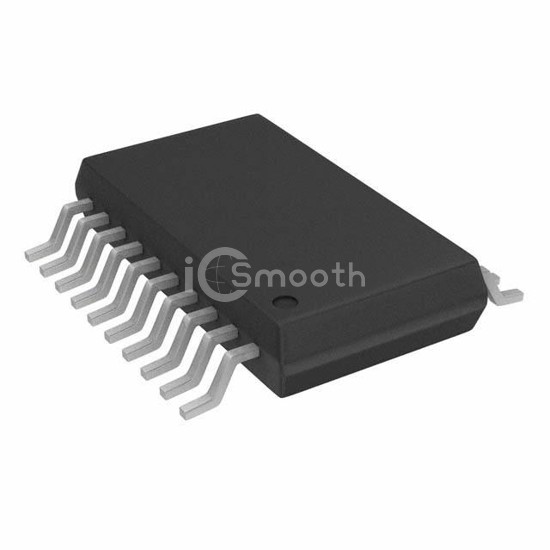

ADCMP564BRQZ

Analog Devices Inc.

IC COMPARATOR ECL DUAL HS 20QSOP

ADCMP564BRQZ is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMPARATOR ECL DUAL HS 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 20-SSOP (0.154", 3.90mm Width), output type Complementary, Differential, ECL, Open-Emitter.

Datasheet Request a Quote

In Stock: 5,577

Tiered Pricing USD

1+ $10.4900 —

10+ $7.1470 -32%

56+ $5.6582 -46%

112+ $5.2214 -50%

280+ $4.8875 -53% BEST

Specifications

16 parameters

Product Status	Active
Type	with Latch
Number of Elements	2
Output Type	Complementary, Differential, ECL, Open-Emitter
Voltage - Supply, Single/Dual (±)	±4.75V ~ 5.25V
Voltage - Input Offset (Max)	2mV @ -5.2V,5V
Current - Input Bias (Max)	3µA @ -5.2V,5V
Current - Output (Typ)	30mA

Current - Quiescent (Max)	5mA, 25mA
CMRR, PSRR (Typ)	80dB CMRR, 85dB PSRR
Propagation Delay (Max)	0.83ns
Hysteresis	±1mV
Operating Temperature	-40°C ~ 85°C
Package / Case	20-SSOP (0.154", 3.90mm Width)
Mounting Type	Surface Mount
Supplier Device Package	20-QSOP
