Name: ADCMP562BRQZ
Brand: Analog Devices Inc.
SKU: ADCMP562BRQZ
Price: 9.27 USD
Availability: InStock

REF: ADCMP562BRQZ Analog Devices Inc.

ADCMP562BRQZ

Analog Devices Inc.

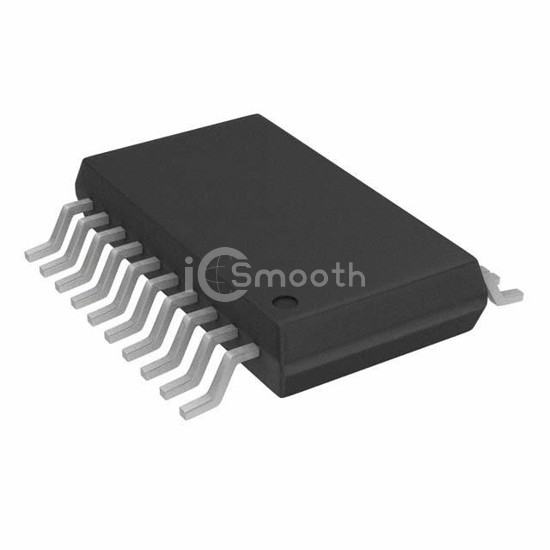

IC COMPARATOR PECL DUAL 20-QSOP

ADCMP562BRQZ is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMPARATOR PECL DUAL 20-QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 20-SSOP (0.154", 3.90mm Width), output type Complementary, Differential, Open-Emitter, PECL.

Datasheet Request a Quote

In Stock: 513

Tiered Pricing USD

1+ $9.2700 —

10+ $6.2660 -32%

56+ $4.9288 -47%

112+ $4.5365 -51%

280+ $4.1375 -55% BEST

Specifications

16 parameters

Product Status	Active
Type	with Latch
Number of Elements	2
Output Type	Complementary, Differential, Open-Emitter, PECL
Voltage - Supply, Single/Dual (±)	±4.75V ~ 5.25V
Voltage - Input Offset (Max)	2mV @ -5.2V,5V
Current - Input Bias (Max)	3µA @ -5.2V,5V
Current - Output (Typ)	30mA

Current - Quiescent (Max)	5mA, 28mA, 13mA
CMRR, PSRR (Typ)	80dB CMRR, 85dB PSRR
Propagation Delay (Max)	0.83ns
Hysteresis	±1mV
Operating Temperature	-40°C ~ 85°C
Package / Case	20-SSOP (0.154", 3.90mm Width)
Mounting Type	Surface Mount
Supplier Device Package	20-QSOP
