Name: ADADC85SZ-10
Brand: Analog Devices Inc.
SKU: ADADC85SZ-10
Availability: InStock

REF: ADADC85SZ-10 Analog Devices Inc.

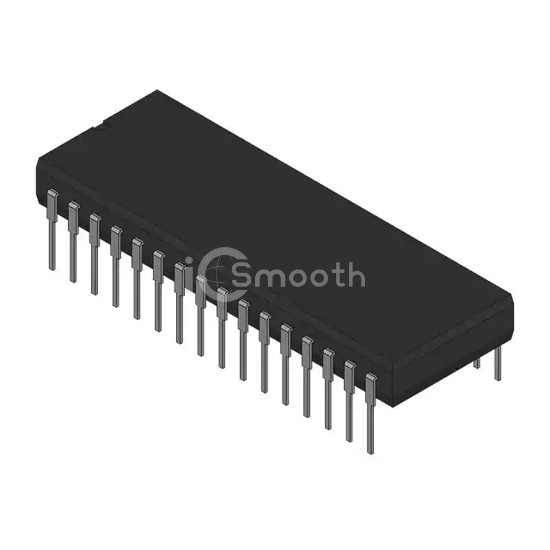

ADADC85SZ-10

10-BIT SAR ADC

ADADC85SZ-10 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 10-BIT SAR ADC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 32-CDIP (0.900", 22.86mm).

Datasheet Request a Quote

In Stock: 9,557

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	-
Number of Inputs	1
Input Type	Single Ended
Data Interface	-
Configuration	ADC
Ratio - S/H:ADC	0:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	Internal
Voltage - Supply, Analog	4.75V ~ 5.25V, ±13.5V ~ 16.5V
Voltage - Supply, Digital	4.75V ~ 5.25V
Features	-
Operating Temperature	-55°C ~ 125°C
Package / Case	32-CDIP (0.900", 22.86mm)
Supplier Device Package	32-SBDIP-H
Mounting Type	Through Hole
