Name: ADADC84Z-12
Brand: Analog Devices Inc.
SKU: ADADC84Z-12
Availability: InStock

REF: ADADC84Z-12 Analog Devices Inc.

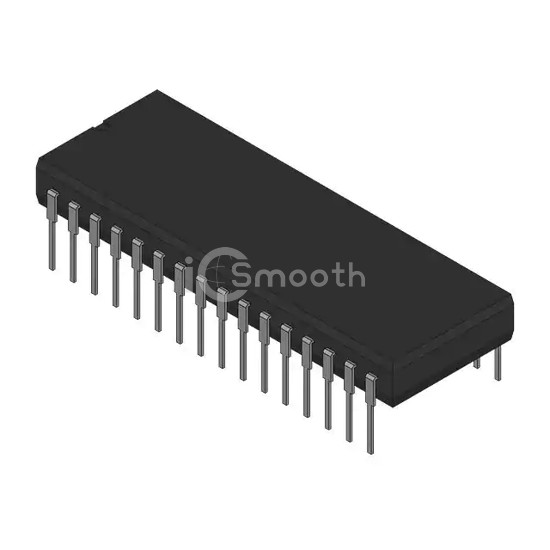

ADADC84Z-12

12-BIT SAR PARALLEL ADC

ADADC84Z-12 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 12-BIT SAR PARALLEL ADC. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.75V ~ -16.5V, ±11.4V ~ 5.25V, package / case 32-CDIP (0.900", 22.86mm).

Datasheet Request a Quote

In Stock: 7,527

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	-
Number of Inputs	12
Input Type	Single Ended
Data Interface	Serial
Configuration	ADC
Ratio - S/H:ADC	0:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	Internal
Voltage - Supply, Analog	4.75V ~ -16.5V, ±11.4V ~ 5.25V
Voltage - Supply, Digital	4.75V ~ -16.5V, ±11.4V ~ 5.25V
Features	-
Operating Temperature	0°C ~ 70°C
Package / Case	32-CDIP (0.900", 22.86mm)
Supplier Device Package	32-BBDIP-H
Mounting Type	Through Hole
