Name: ADADC80-10
Brand: Analog Devices Inc.
SKU: ADADC80-10
Price: 37.58 USD
Availability: InStock

REF: ADADC80-10 Analog Devices Inc.

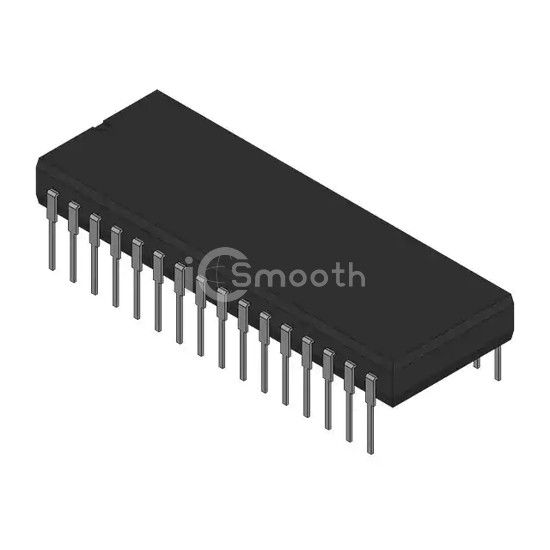

ADADC80-10

10-BIT SAR ADC, 2 CHANNEL

ADADC80-10 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 10-BIT SAR ADC, 2 CHANNEL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 4.75V ~ 5.25V, ±14V ~ 16V, package / case 32-CDIP (0.910", 23.12mm).

Datasheet Request a Quote

In Stock: 1,236

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	40M
Number of Inputs	2
Input Type	Single Ended
Data Interface	Parallel
Configuration	ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	4.75V ~ 5.25V, ±14V ~ 16V
Voltage - Supply, Digital	4.75V ~ 5.25V, ±14V ~ 16V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	32-CDIP (0.910", 23.12mm)
Supplier Device Package	32-SBDIP-H
Mounting Type	Through Hole
