Name: ADA4505-4ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADA4505-4ACBZ-R7
Price: 3.26 USD
Availability: InStock

REF: ADA4505-4ACBZ-R7 Analog Devices Inc.

ADA4505-4ACBZ-R7

Analog Devices Inc.

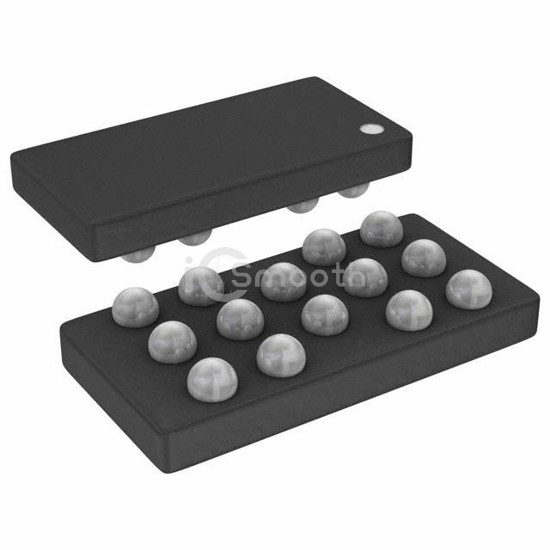

IC CMOS 4 CIRCUIT 14WLCSP

ADA4505-4ACBZ-R7 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC CMOS 4 CIRCUIT 14WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-UFBGA, WLCSP, current - supply 7µA (x4 Channels).

Datasheet Request a Quote

In Stock: 6,554

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	0.006V/µs
Gain Bandwidth Product	50 kHz
-3db Bandwidth	-
Current - Input Bias	0.5 pA
Voltage - Input Offset	500 µV

Current - Supply	7µA (x4 Channels)
Current - Output / Channel	40 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-UFBGA, WLCSP
Supplier Device Package	14-WLCSP (1.46x2.96)
