Name: ADA4051-2ACPZ-R7
Brand: Analog Devices Inc.
SKU: ADA4051-2ACPZ-R7
Price: 4.75 USD
Availability: InStock

REF: ADA4051-2ACPZ-R7 Analog Devices Inc.

ADA4051-2ACPZ-R7

Analog Devices Inc.

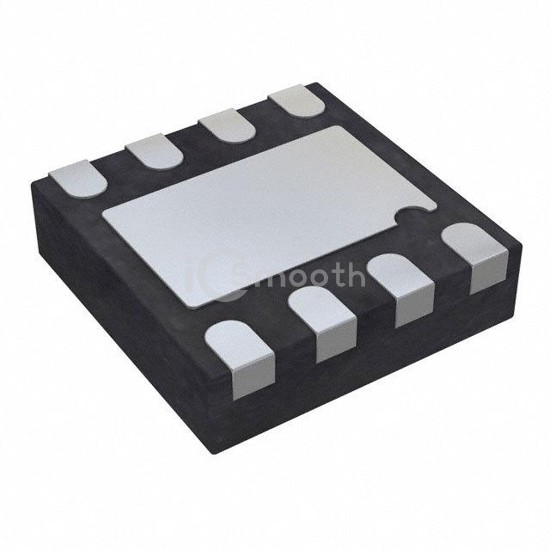

IC OPAMP ZERO-DRIFT 2CIRC 8LFCSP

ADA4051-2ACPZ-R7 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC OPAMP ZERO-DRIFT 2CIRC 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply 13µA (x2 Channels).

Datasheet Request a Quote

In Stock: 1,235

Specifications

17 parameters

Product Status	Active
Amplifier Type	Chopper (Zero-Drift)
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.06V/µs
Gain Bandwidth Product	125 kHz
-3db Bandwidth	-
Current - Input Bias	20 pA
Voltage - Input Offset	2 µV

Current - Supply	13µA (x2 Channels)
Current - Output / Channel	15 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP (3x3)
