Name: AD9789BBCZRL
Brand: Analog Devices Inc.
SKU: AD9789BBCZRL
Price: 94.59 USD
Availability: InStock

REF: AD9789BBCZRL Analog Devices Inc.

AD9789BBCZRL

Analog Devices Inc.

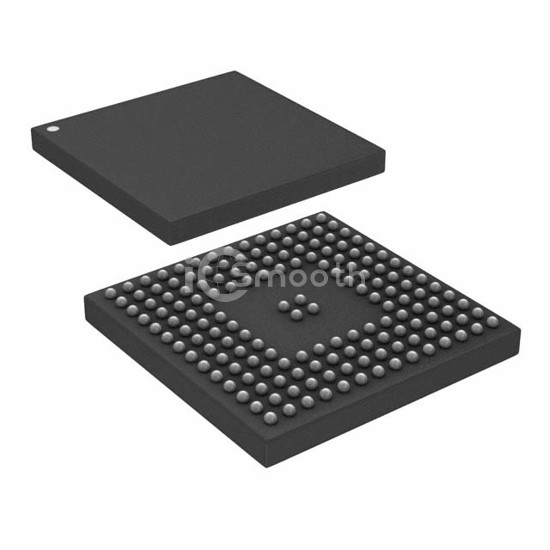

IC DAC 14BIT A-OUT 164CSPBGA

AD9789BBCZRL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT A-OUT 164CSPBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V, package / case 164-LFBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 1,801

Specifications

16 parameters

Product Status	Active
Number of Bits	14
Number of D/A Converters	1
Settling Time	13ns (Typ)
Output Type	Current - Unbuffered
Differential Output	Yes
Data Interface	LVDS - Parallel, Parallel
Reference Type	External, Internal

Voltage - Supply, Analog	3.14V ~ 3.47V
Voltage - Supply, Digital	1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V
INL/DNL (LSB)	-
Architecture	Oversampling Interpolating DAC
Operating Temperature	-40°C ~ 85°C
Package / Case	164-LFBGA, CSPBGA
Supplier Device Package	164-CSPBGA (12x12)
Mounting Type	Surface Mount
