Name: AD9694BCPZ-500
Brand: Analog Devices Inc.
SKU: AD9694BCPZ-500
Price: 720.85 USD
Availability: InStock

REF: AD9694BCPZ-500 Analog Devices Inc.

AD9694BCPZ-500

Analog Devices Inc.

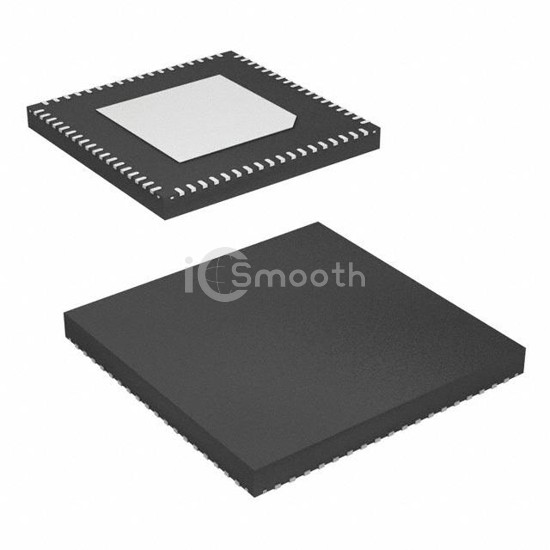

IC ADC 14BIT PIPELINED 72LFCSP

AD9694BCPZ-500 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 72LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 0.95V ~ 1V, package / case 72-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 6,975

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	500M
Number of Inputs	4
Input Type	Differential
Data Interface	JESD204B
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	4

Architecture	Pipelined
Reference Type	Internal
Voltage - Supply, Analog	0.95V ~ 1V, 1.71V ~ 1.89V, 2.44V ~ 2.56V
Voltage - Supply, Digital	0.95V ~ 1V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 105°C
Package / Case	72-VFQFN Exposed Pad, CSP
Supplier Device Package	72-LFCSP-VQ (10x10)
Mounting Type	Surface Mount
