Name: AD9691BCPZRL7-1250
Brand: Analog Devices Inc.
SKU: AD9691BCPZRL7-1250
Price: 998.28 USD
Availability: InStock

REF: AD9691BCPZRL7-1250 Analog Devices Inc.

AD9691BCPZRL7-1250

Analog Devices Inc.

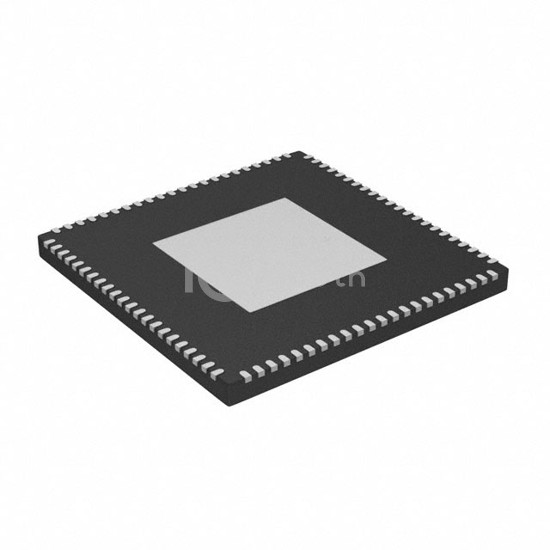

IC ADC 14BIT PIPELINED 88LFCSP

AD9691BCPZRL7-1250 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 88LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.22V ~ 1.28V, package / case 88-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 1,852

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	1.25G
Number of Inputs	2
Input Type	Differential
Data Interface	JESD204B
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	Internal
Voltage - Supply, Analog	1.22V ~ 1.28V, 2.44V ~ 2.56V
Voltage - Supply, Digital	1.22V ~ 1.28V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	88-VFQFN Exposed Pad, CSP
Supplier Device Package	88-LFCSP-VQ (12x12)
Mounting Type	Surface Mount
