Name: AD9690BCPZ-1000
Brand: Analog Devices Inc.
SKU: AD9690BCPZ-1000
Price: 505.25 USD
Availability: InStock

REF: AD9690BCPZ-1000 Analog Devices Inc.

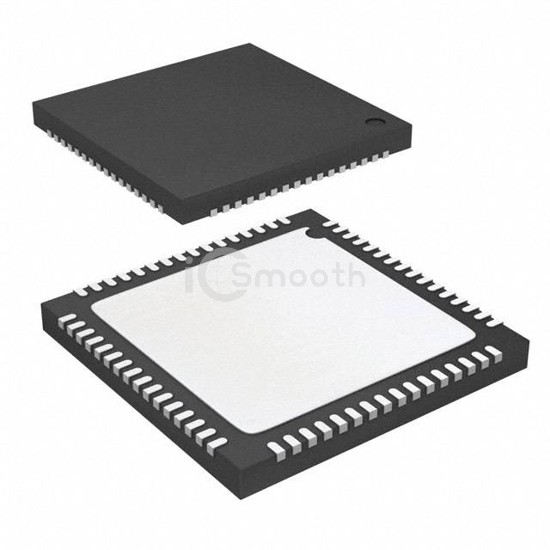

AD9690BCPZ-1000

Analog Devices Inc.

IC ADC 14BIT PIPELINED 64LFCSP

AD9690BCPZ-1000 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 64LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.25V, 1.8V, package / case 64-WFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 7,916

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	1G
Number of Inputs	1
Input Type	Differential
Data Interface	JESD204B
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	Internal
Voltage - Supply, Analog	1.25V, 2.5V
Voltage - Supply, Digital	1.25V, 1.8V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	64-WFQFN Exposed Pad, CSP
Supplier Device Package	64-LFCSP (9x9)
Mounting Type	Surface Mount
