Name: AD9684BBPZ-500
Brand: Analog Devices Inc.
SKU: AD9684BBPZ-500
Price: 539.19 USD
Availability: InStock

REF: AD9684BBPZ-500 Analog Devices Inc.

AD9684BBPZ-500

Analog Devices Inc.

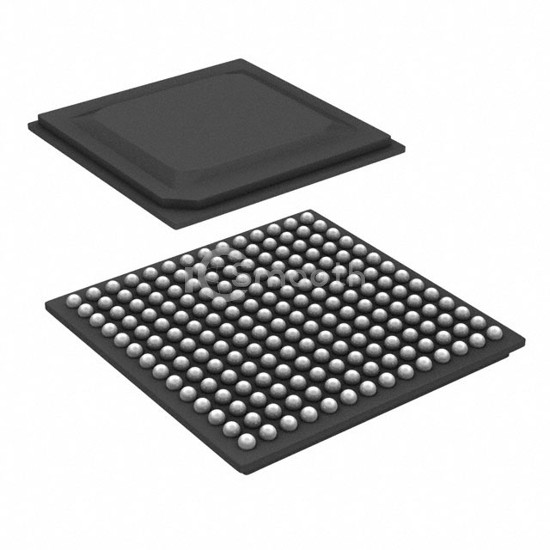

IC ADC 14BIT PIPELINED 196BGA

AD9684BBPZ-500 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 196BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.22V ~ 1.28V, package / case 196-LFBGA Exposed Pad.

Datasheet Request a Quote

In Stock: 33

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	500M
Number of Inputs	2
Input Type	Differential
Data Interface	LVDS - Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	1.25V, 2.5V
Voltage - Supply, Digital	1.22V ~ 1.28V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	196-LFBGA Exposed Pad
Supplier Device Package	196-BGA-ED (12x12)
Mounting Type	Surface Mount
