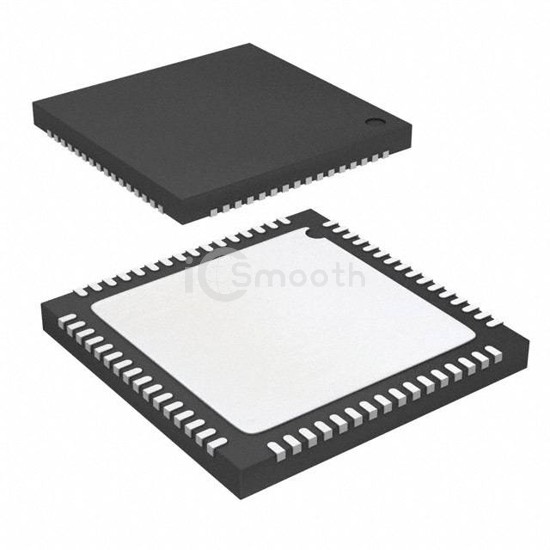

Name: AD9258BCPZ-80
Brand: Analog Devices Inc.
SKU: AD9258BCPZ-80
Price: 111.92 USD
Availability: InStock

REF: AD9258BCPZ-80 Analog Devices Inc.

AD9258BCPZ-80

Analog Devices Inc.

IC ADC 14BIT PIPELINED 64LFCSP

AD9258BCPZ-80 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 64LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 64-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 6

Tiered Pricing USD

1+ $111.9200 —

12+ $98.4125 -12% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	80M
Number of Inputs	2
Input Type	Differential
Data Interface	LVDS - Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	2

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	1.7V ~ 1.9V
Voltage - Supply, Digital	1.7V ~ 1.9V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	64-VFQFN Exposed Pad, CSP
Supplier Device Package	64-LFCSP-VQ (9x9)
Mounting Type	Surface Mount
