Name: AD9238BSTRL-40
Brand: Analog Devices Inc.
SKU: AD9238BSTRL-40
Availability: InStock

REF: AD9238BSTRL-40 Analog Devices Inc.

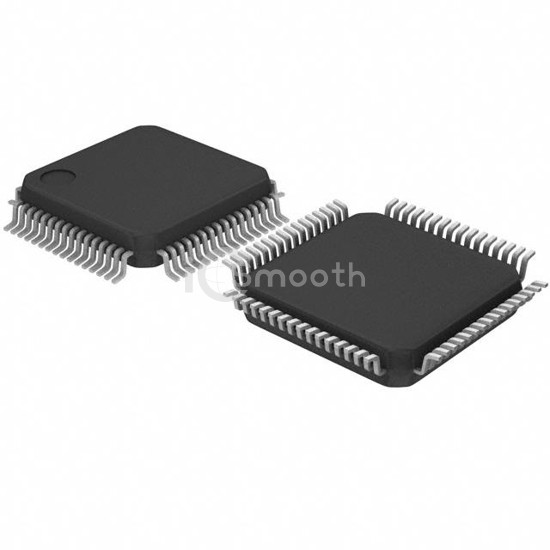

AD9238BSTRL-40

IC ADC 12BIT PIPELINED 64LQFP

AD9238BSTRL-40 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 12BIT PIPELINED 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.25V ~ 3.6V, package / case 64-LQFP.

Datasheet Request a Quote

In Stock: 3,450

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	40M
Number of Inputs	2
Input Type	Differential, Single Ended
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	2

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	2.7V ~ 3.6V
Voltage - Supply, Digital	2.25V ~ 3.6V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	64-LQFP
Supplier Device Package	64-LQFP (7x7)
Mounting Type	Surface Mount
