Name: AD9234BCPZ-500
Brand: Analog Devices Inc.
SKU: AD9234BCPZ-500
Price: 438.48 USD
Availability: InStock

REF: AD9234BCPZ-500 Analog Devices Inc.

AD9234BCPZ-500

Analog Devices Inc.

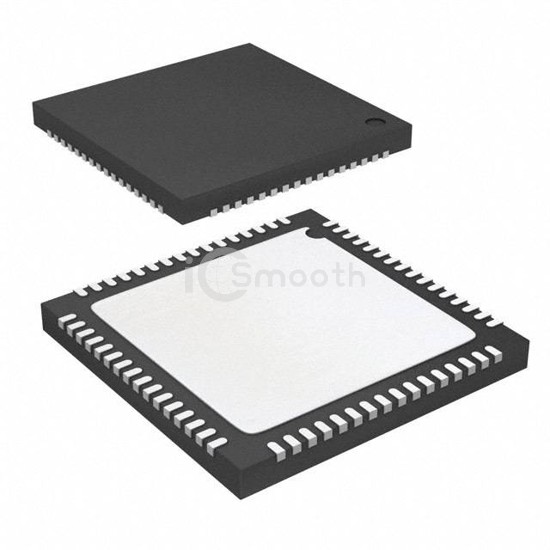

IC ADC 12BIT PIPELINED 64LFCSP

AD9234BCPZ-500 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 12BIT PIPELINED 64LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.22V ~ 1.28V, package / case 64-WFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 5

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	500M
Number of Inputs	2
Input Type	Differential
Data Interface	JESD204B
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	Internal
Voltage - Supply, Analog	1.22V ~ 1.28V, 2.44V ~ 2.56V
Voltage - Supply, Digital	1.22V ~ 1.28V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	64-WFQFN Exposed Pad, CSP
Supplier Device Package	64-LFCSP (9x9)
Mounting Type	Surface Mount
