AD9152BCPZRL

In Stock: 2,676

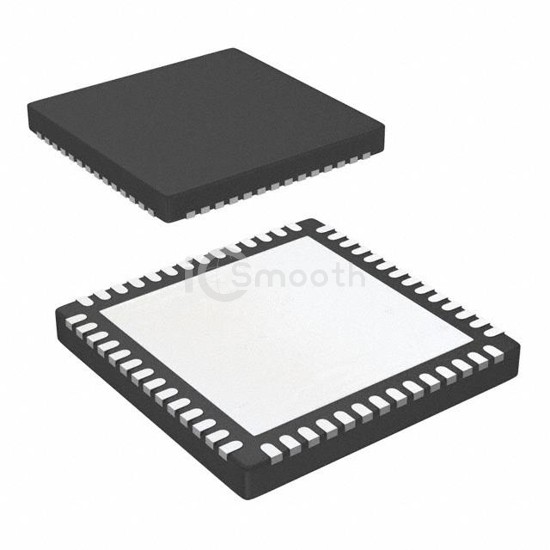

AD9152BCPZRL - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD9152BCPZRL Analog Devices Inc.
AD9152BCPZRL

Analog Devices Inc.

IC DAC 16BIT A-OUT 56LFCSP

AD9152BCPZRL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 56LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.14V ~ 1.26V, package / case 56-WFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 2,676

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters2
Settling Time-
Output TypeCurrent - Unbuffered
Differential OutputYes
Data InterfaceJESD204B
Reference TypeInternal
Voltage - Supply, Analog3.13V ~ 3.47V
Voltage - Supply, Digital1.14V ~ 1.26V
INL/DNL (LSB)±10, ±5
ArchitectureCurrent Source
Operating Temperature-40°C ~ 85°C
Package / Case56-WFQFN Exposed Pad, CSP
Supplier Device Package56-LFCSP-WQ (8x8)
Mounting TypeSurface Mount
