AD9136BCPZRL

In Stock: 8,236

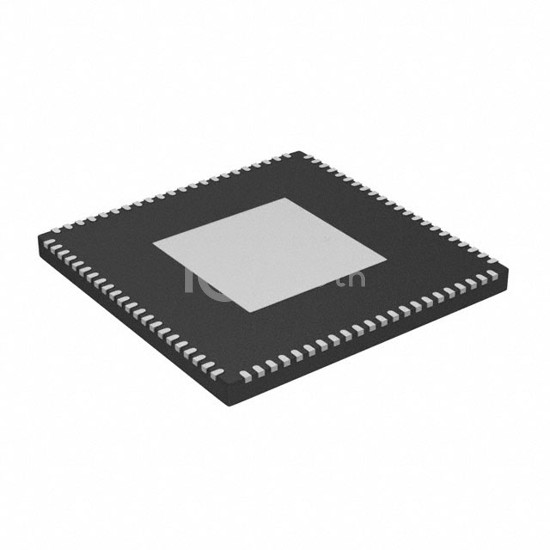

AD9136BCPZRL - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD9136BCPZRL Analog Devices Inc.
AD9136BCPZRL

Analog Devices Inc.

IC DAC 16BIT A-OUT 88LFCSP

AD9136BCPZRL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 88LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.14V ~ 1.26V, package / case 88-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 8,236

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters2
Settling Time20ns (Typ)
Output TypeCurrent - Unbuffered
Differential OutputYes
Data InterfaceJESD204B
Reference TypeInternal
Voltage - Supply, Analog3.13V ~ 3.47V
Voltage - Supply, Digital1.14V ~ 1.26V
INL/DNL (LSB)±2, ±1
ArchitectureCurrent Source
Operating Temperature-40°C ~ 85°C
Package / Case88-VFQFN Exposed Pad, CSP
Supplier Device Package88-LFCSP-VQ (12x12)
Mounting TypeSurface Mount
