Name: AD9136BCPZ
Brand: Analog Devices Inc.
SKU: AD9136BCPZ
Price: 116.97 USD
Availability: InStock

REF: AD9136BCPZ Analog Devices Inc.

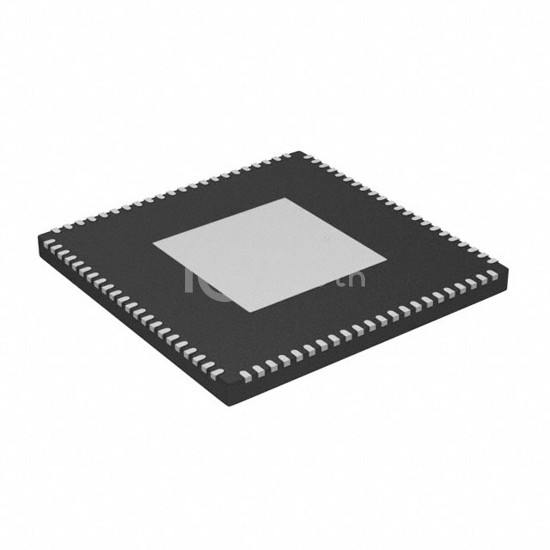

AD9136BCPZ

IC DAC 16BIT A-OUT 88LFCSP

AD9136BCPZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 88LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.14V ~ 1.26V, package / case 88-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 3,428

Tiered Pricing USD

1+ $116.9700 —

12+ $103.7500 -11% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	16
Number of D/A Converters	2
Settling Time	20ns (Typ)
Output Type	Current - Unbuffered
Differential Output	Yes
Data Interface	JESD204B
Reference Type	Internal

Voltage - Supply, Analog	3.13V ~ 3.47V
Voltage - Supply, Digital	1.14V ~ 1.26V
INL/DNL (LSB)	±2, ±1
Architecture	Current Source
Operating Temperature	-40°C ~ 85°C
Package / Case	88-VFQFN Exposed Pad, CSP
Supplier Device Package	88-LFCSP-VQ (12x12)
Mounting Type	Surface Mount
