AD9121BCPZRL

In Stock: 3,168

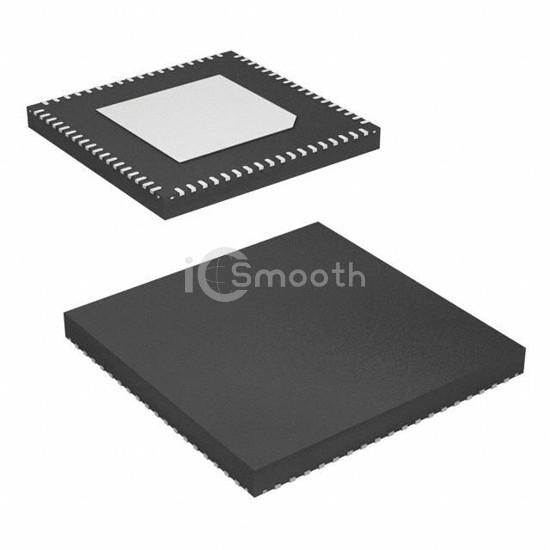

AD9121BCPZRL - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD9121BCPZRL Analog Devices Inc.
AD9121BCPZRL

Analog Devices Inc.

IC DAC 14BIT A-OUT 72LFCSP

AD9121BCPZRL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT A-OUT 72LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.71V ~ 1.89V, package / case 72-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 3,168

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters2
Settling Time20ns (Typ)
Output TypeCurrent - Unbuffered
Differential OutputYes
Data InterfaceLVDS - Parallel
Reference TypeExternal, Internal
Voltage - Supply, Analog3.13V ~ 3.47V
Voltage - Supply, Digital1.71V ~ 1.89V
INL/DNL (LSB)±1, ±0.5
ArchitectureCurrent Source
Operating Temperature-40°C ~ 85°C
Package / Case72-VFQFN Exposed Pad, CSP
Supplier Device Package72-LFCSP-VQ (10x10)
Mounting TypeSurface Mount
