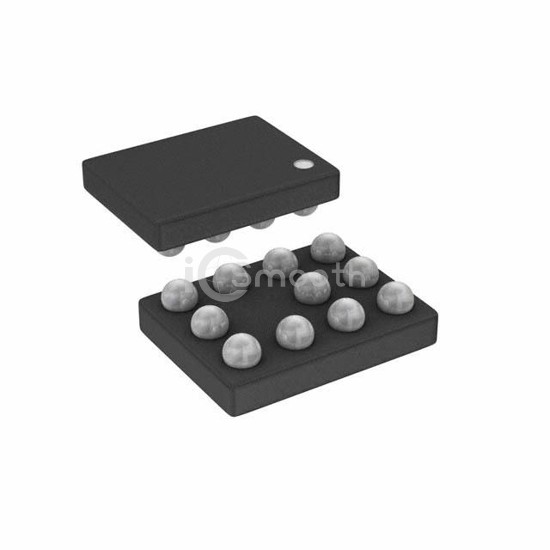

AD8235ACBZ-P7

In Stock: 4,698
AD8235ACBZ-P7 - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AD8235ACBZ-P7 Analog Devices Inc.
AD8235ACBZ-P7

Analog Devices Inc.

IC INST AMP 1 CIRCUIT 11WLCSP

AD8235ACBZ-P7 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC INST AMP 1 CIRCUIT 11WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 11-WFBGA, WLCSP, current - supply 30µA.

Datasheet Request a Quote

In Stock: 4,698

Specifications

17 parameters
Product StatusActive
Amplifier TypeInstrumentation
Number of Circuits1
Output TypeRail-to-Rail
Slew Rate0.011V/µs
Gain Bandwidth Product-
-3db Bandwidth23 kHz
Current - Input Bias1 pA
Voltage - Input Offset2.5 mV
Current - Supply30µA
Current - Output / Channel55 mA
Voltage - Supply Span (Min)1.8 V
Voltage - Supply Span (Max)5.5 V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case11-WFBGA, WLCSP
Supplier Device Package11-WLCSP (1.57x2.04)
