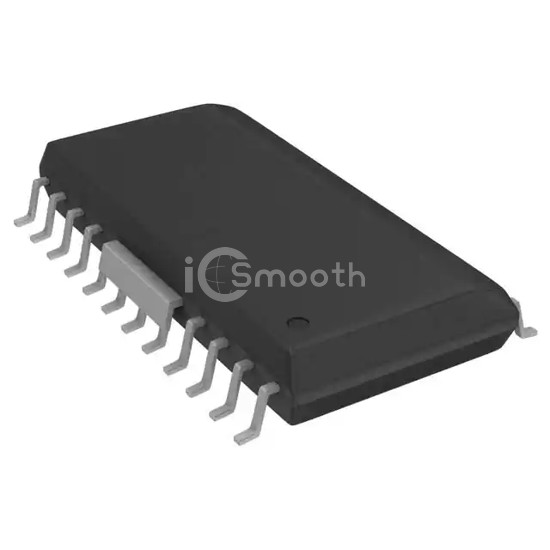

Name: AD815ARB-24
Brand: Analog Devices Inc.
SKU: AD815ARB-24
Price: 9.08 USD
Availability: InStock

REF: AD815ARB-24 Analog Devices Inc.

AD815ARB-24

IC AMP DIFF DUAL LDIST 24SOIC

AD815ARB-24 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC AMP DIFF DUAL LDIST 24SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 24-SOIC (0.295", 7.50mm Width), 18 Leads, Fused Leads, current - supply 23mA.

Datasheet Request a Quote

In Stock: 37,488

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Differential
Number of Circuits	2
Output Type	Differential
Slew Rate	900V/µs
Gain Bandwidth Product	-
-3db Bandwidth	120 MHz
Current - Input Bias	10 µA
Voltage - Input Offset	5 mV

Current - Supply	23mA
Current - Output / Channel	500 mA
Voltage - Supply Span (Min)	10 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	24-SOIC (0.295", 7.50mm Width), 18 Leads, Fused Leads
Supplier Device Package	24-SOIC w/Batwing
